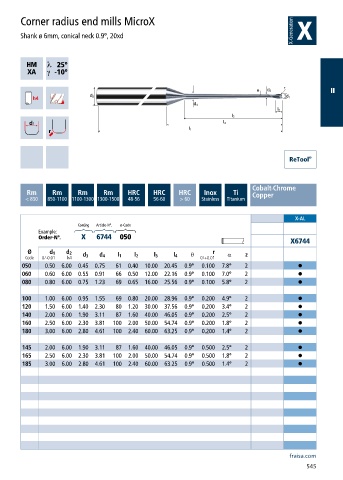

Corner radius end mills MicroX

Shank ø 6mm, conical neck 0.9°, 20xd

h ƍ
a ƍ

II

Cobalt-Chrome
Rm Rm Rm Rm HRC HRC HRC Inox Ti Copper
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium

X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6744 050
X6744
Ø d 1 d 2 q r α
Code 0/-0.01 h4 d 3 d 4 l 1 l 2 l 3 l 4 0/+0.01 z
050 0.50 6.00 0.45 0.75 61 0.40 10.00 20.45 0.9° 0.100 7.8° 2 •
060 0.60 6.00 0.55 0.91 66 0.50 12.00 22.16 0.9° 0.100 7.0° 2 •
080 0.80 6.00 0.75 1.23 69 0.65 16.00 25.56 0.9° 0.100 5.8° 2 •

100 1.00 6.00 0.95 1.55 69 0.80 20.00 28.96 0.9° 0.200 4.9° 2 •
120 1.50 6.00 1.40 2.30 80 1.20 30.00 37.56 0.9° 0.200 3.4° 2 •
140 2.00 6.00 1.90 3.11 87 1.60 40.00 46.05 0.9° 0.200 2.5° 2 •
160 2.50 6.00 2.30 3.81 100 2.00 50.00 54.74 0.9° 0.200 1.8° 2 •
180 3.00 6.00 2.80 4.61 100 2.40 60.00 63.25 0.9° 0.200 1.4° 2 •

145 2.00 6.00 1.90 3.11 87 1.60 40.00 46.05 0.9° 0.500 2.5° 2 •
165 2.50 6.00 2.30 3.81 100 2.00 50.00 54.74 0.9° 0.500 1.8° 2 •
185 3.00 6.00 2.80 4.61 100 2.40 60.00 63.25 0.9° 0.500 1.4° 2 •

fraisa.com
545
