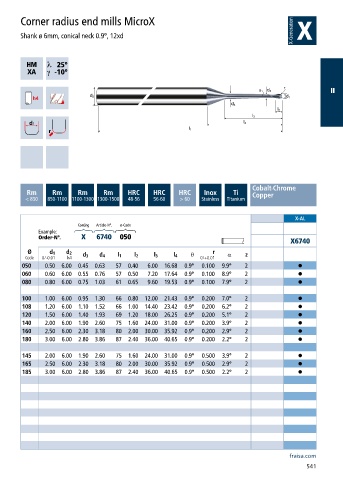

Corner radius end mills MicroX

Shank ø 6mm, conical neck 0.9°, 12xd

h ƍ
a ƍ

II

Cobalt-Chrome
Rm Rm Rm Rm HRC HRC HRC Inox Ti Copper
< 850 850-1100 1100-1300 1300-1500 48-56 56-60 > 60 Stainless Titanium

X-AL
Coating Article-N°. ø-Code
Example:
Order-N°. X 6740 050
X6740
Ø d 1 d 2 q r α
Code 0/-0.01 h4 d 3 d 4 l 1 l 2 l 3 l 4 0/+0.01 z
050 0.50 6.00 0.45 0.63 57 0.40 6.00 16.68 0.9° 0.100 9.9° 2 •
060 0.60 6.00 0.55 0.76 57 0.50 7.20 17.64 0.9° 0.100 8.9° 2 •
080 0.80 6.00 0.75 1.03 61 0.65 9.60 19.53 0.9° 0.100 7.9° 2 •

100 1.00 6.00 0.95 1.30 66 0.80 12.00 21.43 0.9° 0.200 7.0° 2 •
108 1.20 6.00 1.10 1.52 66 1.00 14.40 23.42 0.9° 0.200 6.2° 2 •
120 1.50 6.00 1.40 1.93 69 1.20 18.00 26.25 0.9° 0.200 5.1° 2 •
140 2.00 6.00 1.90 2.60 75 1.60 24.00 31.00 0.9° 0.200 3.9° 2 •
160 2.50 6.00 2.30 3.18 80 2.00 30.00 35.92 0.9° 0.200 2.9° 2 •
180 3.00 6.00 2.80 3.86 87 2.40 36.00 40.65 0.9° 0.200 2.2° 2 •

145 2.00 6.00 1.90 2.60 75 1.60 24.00 31.00 0.9° 0.500 3.9° 2 •
165 2.50 6.00 2.30 3.18 80 2.00 30.00 35.92 0.9° 0.500 2.9° 2 •
185 3.00 6.00 2.80 3.86 87 2.40 36.00 40.65 0.9° 0.500 2.2° 2 •
