P. 671

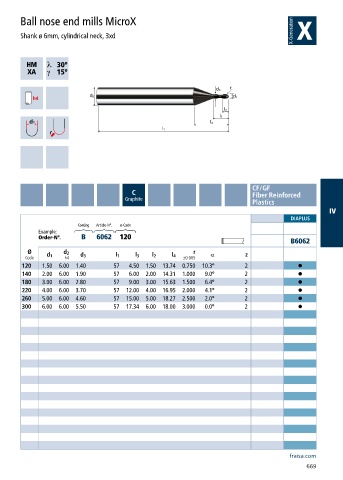

Ball nose end mills MicroX
Shank ø 6mm, cylindrical neck, 3xd
h ƍ
a ƍ
CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAPLUS
Coating Article-N°. ø-Code
Example:
Order-N°. B 6062 120
B6062
Ø d 2 r α
d 1 d 3 l 1 l 3 l 2 l 4 z
Code h4 ±0.005
120 1.50 6.00 1.40 57 4.50 1.50 13.74 0.750 10.3° 2 •
140 2.00 6.00 1.90 57 6.00 2.00 14.31 1.000 9.0° 2 •
180 3.00 6.00 2.80 57 9.00 3.00 15.63 1.500 6.4° 2 •
220 4.00 6.00 3.70 57 12.00 4.00 16.95 2.000 4.1° 2 •
260 5.00 6.00 4.60 57 15.00 5.00 18.27 2.500 2.0° 2 •
300 6.00 6.00 5.50 57 17.34 6.00 18.00 3.000 0.0° 2 •
fraisa.com
669
