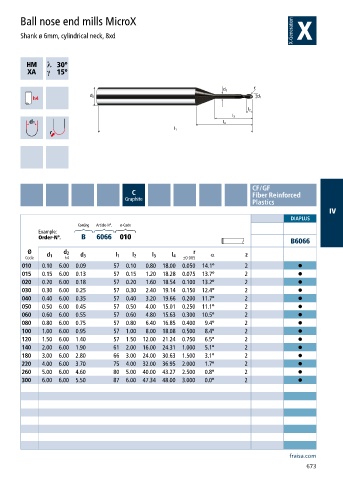

Ball nose end mills MicroX

Shank ø 6mm, cylindrical neck, 8xd

h ƍ
a ƍ

CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAPLUS
Coating Article-N°. ø-Code
Example:
Order-N°. B 6066 010
B6066
Ø d 2 r α
d 1 d 3 l 1 l 2 l 3 l 4 z
Code h4 ±0.005
010 0.10 6.00 0.09 57 0.10 0.80 18.00 0.050 14.1° 2 •
015 0.15 6.00 0.13 57 0.15 1.20 18.28 0.075 13.7° 2 •
020 0.20 6.00 0.18 57 0.20 1.60 18.54 0.100 13.2° 2 •
030 0.30 6.00 0.25 57 0.30 2.40 19.14 0.150 12.4° 2 •
040 0.40 6.00 0.35 57 0.40 3.20 19.66 0.200 11.7° 2 •
050 0.50 6.00 0.45 57 0.50 4.00 15.01 0.250 11.1° 2 •
060 0.60 6.00 0.55 57 0.60 4.80 15.63 0.300 10.5° 2 •
080 0.80 6.00 0.75 57 0.80 6.40 16.85 0.400 9.4° 2 •
100 1.00 6.00 0.95 57 1.00 8.00 18.08 0.500 8.4° 2 •
120 1.50 6.00 1.40 57 1.50 12.00 21.24 0.750 6.5° 2 •
140 2.00 6.00 1.90 61 2.00 16.00 24.31 1.000 5.1° 2 •
180 3.00 6.00 2.80 66 3.00 24.00 30.63 1.500 3.1° 2 •
220 4.00 6.00 3.70 75 4.00 32.00 36.95 2.000 1.7° 2 •
260 5.00 6.00 4.60 80 5.00 40.00 43.27 2.500 0.8° 2 •
300 6.00 6.00 5.50 87 6.00 47.34 48.00 3.000 0.0° 2 •
