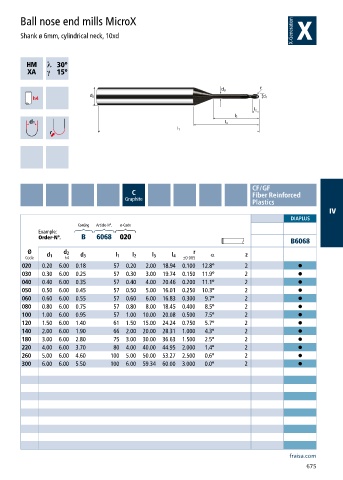

Ball nose end mills MicroX

Shank ø 6mm, cylindrical neck, 10xd

h ƍ
a ƍ

CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAPLUS
Coating Article-N°. ø-Code
Example:
Order-N°. B 6068 020
B6068
Ø d 2 r α
d 1 d 3 l 1 l 2 l 3 l 4 z
Code h4 ±0.005
020 0.20 6.00 0.18 57 0.20 2.00 18.94 0.100 12.8° 2 •
030 0.30 6.00 0.25 57 0.30 3.00 19.74 0.150 11.9° 2 •
040 0.40 6.00 0.35 57 0.40 4.00 20.46 0.200 11.1° 2 •
050 0.50 6.00 0.45 57 0.50 5.00 16.01 0.250 10.3° 2 •
060 0.60 6.00 0.55 57 0.60 6.00 16.83 0.300 9.7° 2 •
080 0.80 6.00 0.75 57 0.80 8.00 18.45 0.400 8.5° 2 •
100 1.00 6.00 0.95 57 1.00 10.00 20.08 0.500 7.5° 2 •
120 1.50 6.00 1.40 61 1.50 15.00 24.24 0.750 5.7° 2 •
140 2.00 6.00 1.90 66 2.00 20.00 28.31 1.000 4.3° 2 •
180 3.00 6.00 2.80 75 3.00 30.00 36.63 1.500 2.5° 2 •
220 4.00 6.00 3.70 80 4.00 40.00 44.95 2.000 1.4° 2 •
260 5.00 6.00 4.60 100 5.00 50.00 53.27 2.500 0.6° 2 •
300 6.00 6.00 5.50 100 6.00 59.34 60.00 3.000 0.0° 2 •
