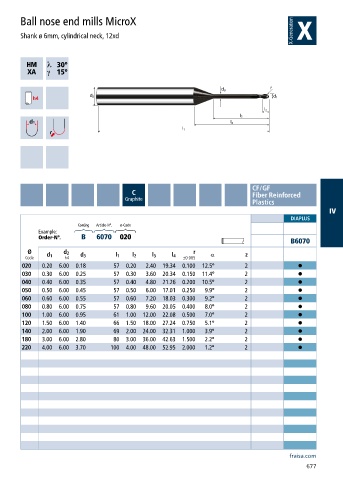

Ball nose end mills MicroX

Shank ø 6mm, cylindrical neck, 12xd

h ƍ
a ƍ

CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAPLUS
Coating Article-N°. ø-Code
Example:
Order-N°. B 6070 020
B6070
Ø d 2 r α
d 1 d 3 l 1 l 2 l 3 l 4 z
Code h4 ±0.005
020 0.20 6.00 0.18 57 0.20 2.40 19.34 0.100 12.5° 2 •
030 0.30 6.00 0.25 57 0.30 3.60 20.34 0.150 11.4° 2 •
040 0.40 6.00 0.35 57 0.40 4.80 21.26 0.200 10.5° 2 •
050 0.50 6.00 0.45 57 0.50 6.00 17.01 0.250 9.9° 2 •
060 0.60 6.00 0.55 57 0.60 7.20 18.03 0.300 9.2° 2 •
080 0.80 6.00 0.75 57 0.80 9.60 20.05 0.400 8.0° 2 •
100 1.00 6.00 0.95 61 1.00 12.00 22.08 0.500 7.0° 2 •
120 1.50 6.00 1.40 66 1.50 18.00 27.24 0.750 5.1° 2 •
140 2.00 6.00 1.90 69 2.00 24.00 32.31 1.000 3.9° 2 •
180 3.00 6.00 2.80 80 3.00 36.00 42.63 1.500 2.2° 2 •
220 4.00 6.00 3.70 100 4.00 48.00 52.95 2.000 1.2° 2 •
