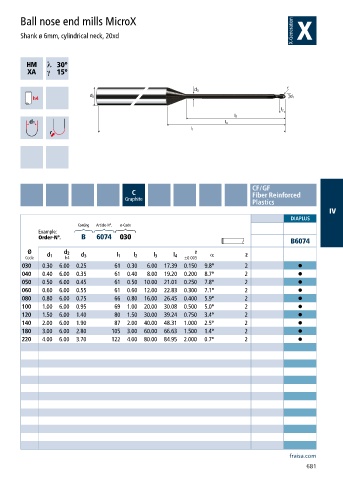

Ball nose end mills MicroX

Shank ø 6mm, cylindrical neck, 20xd

h ƍ
a ƍ

CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAPLUS
Coating Article-N°. ø-Code
Example:
Order-N°. B 6074 030
B6074
Ø d 2 r α
d 1 d 3 l 1 l 2 l 3 l 4 z
Code h4 ±0.005
030 0.30 6.00 0.25 61 0.30 6.00 17.39 0.150 9.8° 2 •
040 0.40 6.00 0.35 61 0.40 8.00 19.20 0.200 8.7° 2 •
050 0.50 6.00 0.45 61 0.50 10.00 21.01 0.250 7.8° 2 •
060 0.60 6.00 0.55 61 0.60 12.00 22.83 0.300 7.1° 2 •
080 0.80 6.00 0.75 66 0.80 16.00 26.45 0.400 5.9° 2 •
100 1.00 6.00 0.95 69 1.00 20.00 30.08 0.500 5.0° 2 •
120 1.50 6.00 1.40 80 1.50 30.00 39.24 0.750 3.4° 2 •
140 2.00 6.00 1.90 87 2.00 40.00 48.31 1.000 2.5° 2 •
180 3.00 6.00 2.80 105 3.00 60.00 66.63 1.500 1.4° 2 •
220 4.00 6.00 3.70 122 4.00 80.00 84.95 2.000 0.7° 2 •
