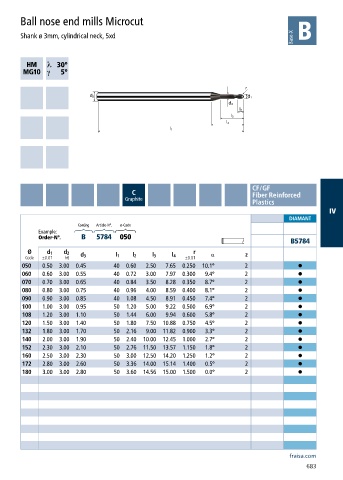

Ball nose end mills Microcut

Shank ø 3mm, cylindrical neck, 5xd

h ƍ
a ƍ

CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAMANT
Coating Article-N°. ø-Code
Example:
Order-N°. B 5784 050
B5784
Ø d 1 d 2 r α
d 3 l 1 l 2 l 3 l 4 z
Code ±0.01 h6 ±0.01
050 0.50 3.00 0.45 40 0.60 2.50 7.65 0.250 10.1° 2 •
060 0.60 3.00 0.55 40 0.72 3.00 7.97 0.300 9.4° 2 •
070 0.70 3.00 0.65 40 0.84 3.50 8.28 0.350 8.7° 2 •
080 0.80 3.00 0.75 40 0.96 4.00 8.59 0.400 8.1° 2 •
090 0.90 3.00 0.85 40 1.08 4.50 8.91 0.450 7.4° 2 •
100 1.00 3.00 0.95 50 1.20 5.00 9.22 0.500 6.9° 2 •
108 1.20 3.00 1.10 50 1.44 6.00 9.94 0.600 5.8° 2 •
120 1.50 3.00 1.40 50 1.80 7.50 10.88 0.750 4.5° 2 •
132 1.80 3.00 1.70 50 2.16 9.00 11.82 0.900 3.3° 2 •
140 2.00 3.00 1.90 50 2.40 10.00 12.45 1.000 2.7° 2 •
152 2.30 3.00 2.10 50 2.76 11.50 13.57 1.150 1.8° 2 •
160 2.50 3.00 2.30 50 3.00 12.50 14.20 1.250 1.2° 2 •
172 2.80 3.00 2.60 50 3.36 14.00 15.14 1.400 0.5° 2 •
180 3.00 3.00 2.80 50 3.60 14.56 15.00 1.500 0.0° 2 •
