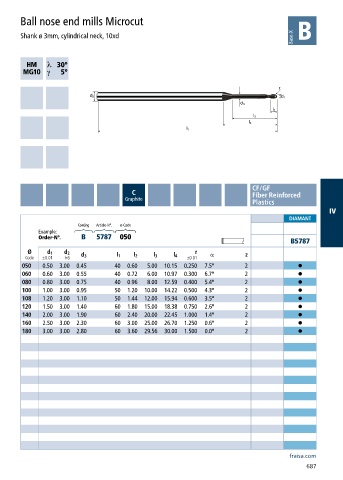

Ball nose end mills Microcut

Shank ø 3mm, cylindrical neck, 10xd

h ƍ
a ƍ

CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAMANT
Coating Article-N°. ø-Code
Example:
Order-N°. B 5787 050
B5787
Ø d 1 d 2 r α
d 3 l 1 l 2 l 3 l 4 z
Code ±0.01 h6 ±0.01
050 0.50 3.00 0.45 40 0.60 5.00 10.15 0.250 7.5° 2 •
060 0.60 3.00 0.55 40 0.72 6.00 10.97 0.300 6.7° 2 •
080 0.80 3.00 0.75 40 0.96 8.00 12.59 0.400 5.4° 2 •
100 1.00 3.00 0.95 50 1.20 10.00 14.22 0.500 4.3° 2 •
108 1.20 3.00 1.10 50 1.44 12.00 15.94 0.600 3.5° 2 •
120 1.50 3.00 1.40 60 1.80 15.00 18.38 0.750 2.6° 2 •
140 2.00 3.00 1.90 60 2.40 20.00 22.45 1.000 1.4° 2 •
160 2.50 3.00 2.30 60 3.00 25.00 26.70 1.250 0.6° 2 •
180 3.00 3.00 2.80 60 3.60 29.56 30.00 1.500 0.0° 2 •
