P. 693

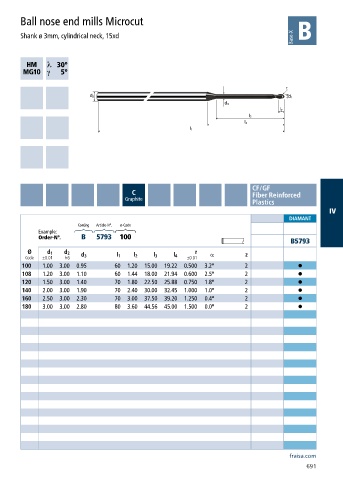

Ball nose end mills Microcut
Shank ø 3mm, cylindrical neck, 15xd
h ƍ
a ƍ
CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAMANT
Coating Article-N°. ø-Code
Example:
Order-N°. B 5793 100
B5793
Ø d 1 d 2 r α
d 3 l 1 l 2 l 3 l 4 z
Code ±0.01 h6 ±0.01
100 1.00 3.00 0.95 60 1.20 15.00 19.22 0.500 3.2° 2 •
108 1.20 3.00 1.10 60 1.44 18.00 21.94 0.600 2.5° 2 •
120 1.50 3.00 1.40 70 1.80 22.50 25.88 0.750 1.8° 2 •
140 2.00 3.00 1.90 70 2.40 30.00 32.45 1.000 1.0° 2 •
160 2.50 3.00 2.30 70 3.00 37.50 39.20 1.250 0.4° 2 •
180 3.00 3.00 2.80 80 3.60 44.56 45.00 1.500 0.0° 2 •
