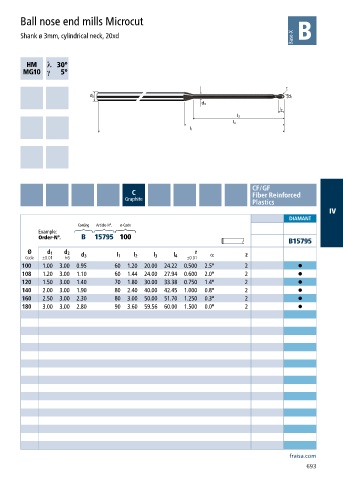

Ball nose end mills Microcut

Shank ø 3mm, cylindrical neck, 20xd

h ƍ
a ƍ

CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAMANT
Coating Article-N°. ø-Code
Example:
Order-N°. B 15795 100
B15795
Ø d 1 d 2 r α
d 3 l 1 l 2 l 3 l 4 z
Code ±0.01 h6 ±0.01
100 1.00 3.00 0.95 60 1.20 20.00 24.22 0.500 2.5° 2 •
108 1.20 3.00 1.10 60 1.44 24.00 27.94 0.600 2.0° 2 •
120 1.50 3.00 1.40 70 1.80 30.00 33.38 0.750 1.4° 2 •
140 2.00 3.00 1.90 80 2.40 40.00 42.45 1.000 0.8° 2 •
160 2.50 3.00 2.30 80 3.00 50.00 51.70 1.250 0.3° 2 •
180 3.00 3.00 2.80 90 3.60 59.56 60.00 1.500 0.0° 2 •
