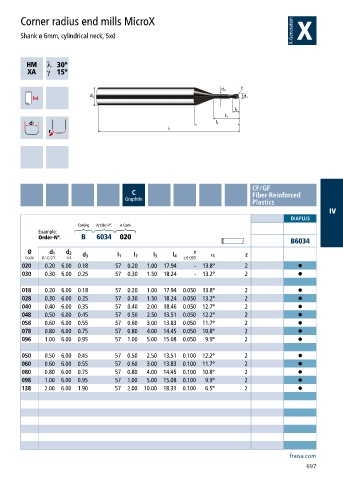

Corner radius end mills MicroX

Shank ø 6mm, cylindrical neck, 5xd

h ƍ
a ƍ

CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAPLUS
Coating Article-N°. ø-Code
Example:
Order-N°. B 6034 020
B6034
Ø d 1 d 2 r α
d 3 l 1 l 2 l 3 l 4 z
Code 0/-0.01 h4 ±0.005
020 0.20 6.00 0.18 57 0.20 1.00 17.94 - 13.8° 2 •
030 0.30 6.00 0.25 57 0.30 1.50 18.24 - 13.2° 2 •

018 0.20 6.00 0.18 57 0.20 1.00 17.94 0.050 13.8° 2 •
028 0.30 6.00 0.25 57 0.30 1.50 18.24 0.050 13.2° 2 •
040 0.40 6.00 0.35 57 0.40 2.00 18.46 0.050 12.7° 2 •
048 0.50 6.00 0.45 57 0.50 2.50 13.51 0.050 12.2° 2 •
058 0.60 6.00 0.55 57 0.60 3.00 13.83 0.050 11.7° 2 •
078 0.80 6.00 0.75 57 0.80 4.00 14.45 0.050 10.8° 2 •
096 1.00 6.00 0.95 57 1.00 5.00 15.08 0.050 9.9° 2 •

050 0.50 6.00 0.45 57 0.50 2.50 13.51 0.100 12.2° 2 •
060 0.60 6.00 0.55 57 0.60 3.00 13.83 0.100 11.7° 2 •
080 0.80 6.00 0.75 57 0.80 4.00 14.45 0.100 10.8° 2 •
098 1.00 6.00 0.95 57 1.00 5.00 15.08 0.100 9.9° 2 •
138 2.00 6.00 1.90 57 2.00 10.00 18.31 0.100 6.5° 2 •
