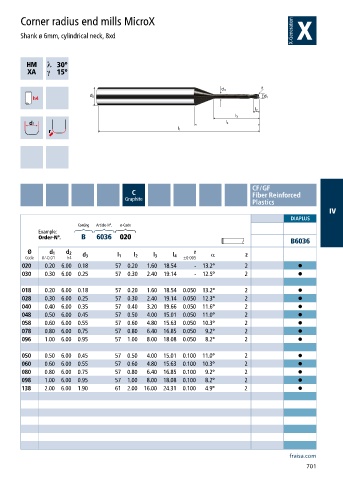

Corner radius end mills MicroX

Shank ø 6mm, cylindrical neck, 8xd

h ƍ
a ƍ

CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAPLUS
Coating Article-N°. ø-Code
Example:
Order-N°. B 6036 020
B6036
Ø d 1 d 2 r α
d 3 l 1 l 2 l 3 l 4 z
Code 0/-0.01 h4 ±0.005
020 0.20 6.00 0.18 57 0.20 1.60 18.54 - 13.2° 2 •
030 0.30 6.00 0.25 57 0.30 2.40 19.14 - 12.5° 2 •

018 0.20 6.00 0.18 57 0.20 1.60 18.54 0.050 13.2° 2 •
028 0.30 6.00 0.25 57 0.30 2.40 19.14 0.050 12.3° 2 •
040 0.40 6.00 0.35 57 0.40 3.20 19.66 0.050 11.6° 2 •
048 0.50 6.00 0.45 57 0.50 4.00 15.01 0.050 11.0° 2 •
058 0.60 6.00 0.55 57 0.60 4.80 15.63 0.050 10.3° 2 •
078 0.80 6.00 0.75 57 0.80 6.40 16.85 0.050 9.2° 2 •
096 1.00 6.00 0.95 57 1.00 8.00 18.08 0.050 8.2° 2 •

050 0.50 6.00 0.45 57 0.50 4.00 15.01 0.100 11.0° 2 •
060 0.60 6.00 0.55 57 0.60 4.80 15.63 0.100 10.3° 2 •
080 0.80 6.00 0.75 57 0.80 6.40 16.85 0.100 9.2° 2 •
098 1.00 6.00 0.95 57 1.00 8.00 18.08 0.100 8.2° 2 •
138 2.00 6.00 1.90 61 2.00 16.00 24.31 0.100 4.9° 2 •

fraisa.com
701
