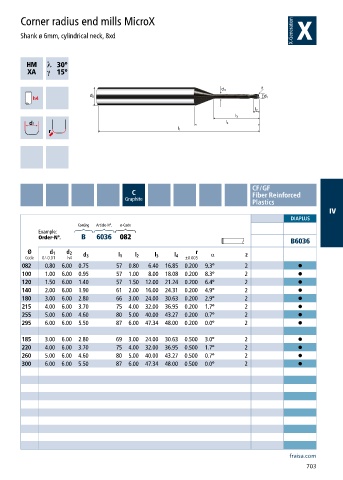

Corner radius end mills MicroX

Shank ø 6mm, cylindrical neck, 8xd

h ƍ
a ƍ

CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAPLUS
Coating Article-N°. ø-Code
Example:
Order-N°. B 6036 082
B6036
Ø d 1 d 2 r α
d 3 l 1 l 2 l 3 l 4 z
Code 0/-0.01 h4 ±0.005
082 0.80 6.00 0.75 57 0.80 6.40 16.85 0.200 9.3° 2 •
100 1.00 6.00 0.95 57 1.00 8.00 18.08 0.200 8.3° 2 •
120 1.50 6.00 1.40 57 1.50 12.00 21.24 0.200 6.4° 2 •
140 2.00 6.00 1.90 61 2.00 16.00 24.31 0.200 4.9° 2 •
180 3.00 6.00 2.80 66 3.00 24.00 30.63 0.200 2.9° 2 •
215 4.00 6.00 3.70 75 4.00 32.00 36.95 0.200 1.7° 2 •
255 5.00 6.00 4.60 80 5.00 40.00 43.27 0.200 0.7° 2 •
295 6.00 6.00 5.50 87 6.00 47.34 48.00 0.200 0.0° 2 •
185 3.00 6.00 2.80 69 3.00 24.00 30.63 0.500 3.0° 2 •
220 4.00 6.00 3.70 75 4.00 32.00 36.95 0.500 1.7° 2 •
260 5.00 6.00 4.60 80 5.00 40.00 43.27 0.500 0.7° 2 •
300 6.00 6.00 5.50 87 6.00 47.34 48.00 0.500 0.0° 2 •
