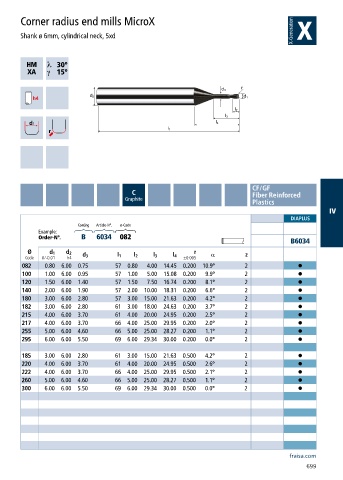

Corner radius end mills MicroX

Shank ø 6mm, cylindrical neck, 5xd

h ƍ
a ƍ

CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAPLUS
Coating Article-N°. ø-Code
Example:
Order-N°. B 6034 082
B6034
Ø d 1 d 2 r α
d 3 l 1 l 2 l 3 l 4 z
Code 0/-0.01 h4 ±0.005
082 0.80 6.00 0.75 57 0.80 4.00 14.45 0.200 10.9° 2 •
100 1.00 6.00 0.95 57 1.00 5.00 15.08 0.200 9.9° 2 •
120 1.50 6.00 1.40 57 1.50 7.50 16.74 0.200 8.1° 2 •
140 2.00 6.00 1.90 57 2.00 10.00 18.31 0.200 6.6° 2 •
180 3.00 6.00 2.80 57 3.00 15.00 21.63 0.200 4.2° 2 •
182 3.00 6.00 2.80 61 3.00 18.00 24.63 0.200 3.7° 2 •
215 4.00 6.00 3.70 61 4.00 20.00 24.95 0.200 2.5° 2 •
217 4.00 6.00 3.70 66 4.00 25.00 29.95 0.200 2.0° 2 •
255 5.00 6.00 4.60 66 5.00 25.00 28.27 0.200 1.1° 2 •
295 6.00 6.00 5.50 69 6.00 29.34 30.00 0.200 0.0° 2 •

185 3.00 6.00 2.80 61 3.00 15.00 21.63 0.500 4.2° 2 •
220 4.00 6.00 3.70 61 4.00 20.00 24.95 0.500 2.6° 2 •
222 4.00 6.00 3.70 66 4.00 25.00 29.95 0.500 2.1° 2 •
260 5.00 6.00 4.60 66 5.00 25.00 28.27 0.500 1.1° 2 •
300 6.00 6.00 5.50 69 6.00 29.34 30.00 0.500 0.0° 2 •
