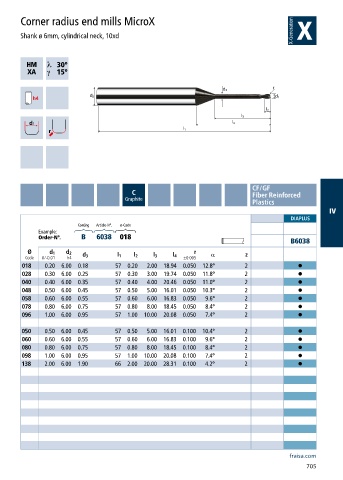

Corner radius end mills MicroX

Shank ø 6mm, cylindrical neck, 10xd

h ƍ
a ƍ

CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAPLUS
Coating Article-N°. ø-Code
Example:
Order-N°. B 6038 018
B6038
Ø d 1 d 2 r α
d 3 l 1 l 2 l 3 l 4 z
Code 0/-0.01 h4 ±0.005
018 0.20 6.00 0.18 57 0.20 2.00 18.94 0.050 12.8° 2 •
028 0.30 6.00 0.25 57 0.30 3.00 19.74 0.050 11.8° 2 •
040 0.40 6.00 0.35 57 0.40 4.00 20.46 0.050 11.0° 2 •
048 0.50 6.00 0.45 57 0.50 5.00 16.01 0.050 10.3° 2 •
058 0.60 6.00 0.55 57 0.60 6.00 16.83 0.050 9.6° 2 •
078 0.80 6.00 0.75 57 0.80 8.00 18.45 0.050 8.4° 2 •
096 1.00 6.00 0.95 57 1.00 10.00 20.08 0.050 7.4° 2 •

050 0.50 6.00 0.45 57 0.50 5.00 16.01 0.100 10.4° 2 •
060 0.60 6.00 0.55 57 0.60 6.00 16.83 0.100 9.6° 2 •
080 0.80 6.00 0.75 57 0.80 8.00 18.45 0.100 8.4° 2 •
098 1.00 6.00 0.95 57 1.00 10.00 20.08 0.100 7.4° 2 •
138 2.00 6.00 1.90 66 2.00 20.00 28.31 0.100 4.2° 2 •
