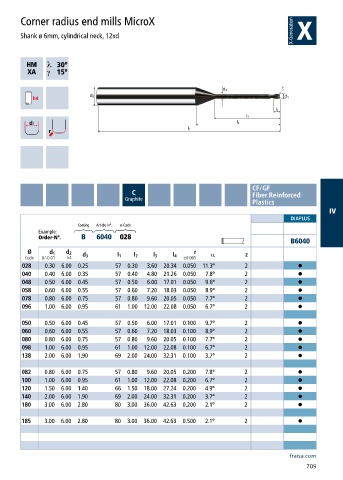

Corner radius end mills MicroX

Shank ø 6mm, cylindrical neck, 12xd

h ƍ
a ƍ

CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAPLUS
Coating Article-N°. ø-Code
Example:
Order-N°. B 6040 028
B6040
Ø d 1 d 2 r α
d 3 l 1 l 2 l 3 l 4 z
Code 0/-0.01 h4 ±0.005
028 0.30 6.00 0.25 57 0.30 3.60 20.34 0.050 11.3° 2 •
040 0.40 6.00 0.35 57 0.40 4.80 21.26 0.050 7.8° 2 •
048 0.50 6.00 0.45 57 0.50 6.00 17.01 0.050 9.6° 2 •
058 0.60 6.00 0.55 57 0.60 7.20 18.03 0.050 8.9° 2 •
078 0.80 6.00 0.75 57 0.80 9.60 20.05 0.050 7.7° 2 •
096 1.00 6.00 0.95 61 1.00 12.00 22.08 0.050 6.7° 2 •

050 0.50 6.00 0.45 57 0.50 6.00 17.01 0.100 9.7° 2 •
060 0.60 6.00 0.55 57 0.60 7.20 18.03 0.100 8.9° 2 •
080 0.80 6.00 0.75 57 0.80 9.60 20.05 0.100 7.7° 2 •
098 1.00 6.00 0.95 61 1.00 12.00 22.08 0.100 6.7° 2 •
138 2.00 6.00 1.90 69 2.00 24.00 32.31 0.100 3.7° 2 •

082 0.80 6.00 0.75 57 0.80 9.60 20.05 0.200 7.8° 2 •
100 1.00 6.00 0.95 61 1.00 12.00 22.08 0.200 6.7° 2 •
120 1.50 6.00 1.40 66 1.50 18.00 27.24 0.200 4.9° 2 •
140 2.00 6.00 1.90 69 2.00 24.00 32.31 0.200 3.7° 2 •
180 3.00 6.00 2.80 80 3.00 36.00 42.63 0.200 2.1° 2 •

185 3.00 6.00 2.80 80 3.00 36.00 42.63 0.500 2.1° 2 •
