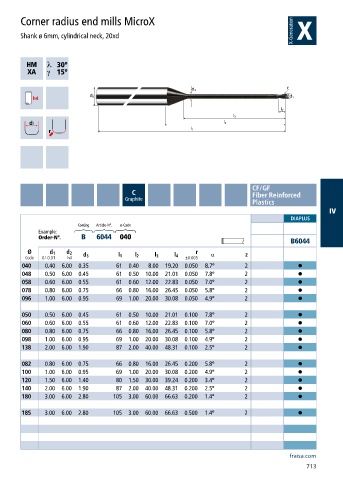

Corner radius end mills MicroX

Shank ø 6mm, cylindrical neck, 20xd

h ƍ
a ƍ

CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAPLUS
Coating Article-N°. ø-Code
Example:
Order-N°. B 6044 040
B6044
Ø d 1 d 2 r α
d 3 l 1 l 2 l 3 l 4 z
Code 0/-0.01 h4 ±0.005
040 0.40 6.00 0.35 61 0.40 8.00 19.20 0.050 8.7° 2 •
048 0.50 6.00 0.45 61 0.50 10.00 21.01 0.050 7.8° 2 •
058 0.60 6.00 0.55 61 0.60 12.00 22.83 0.050 7.0° 2 •
078 0.80 6.00 0.75 66 0.80 16.00 26.45 0.050 5.8° 2 •
096 1.00 6.00 0.95 69 1.00 20.00 30.08 0.050 4.9° 2 •

050 0.50 6.00 0.45 61 0.50 10.00 21.01 0.100 7.8° 2 •
060 0.60 6.00 0.55 61 0.60 12.00 22.83 0.100 7.0° 2 •
080 0.80 6.00 0.75 66 0.80 16.00 26.45 0.100 5.8° 2 •
098 1.00 6.00 0.95 69 1.00 20.00 30.08 0.100 4.9° 2 •
138 2.00 6.00 1.90 87 2.00 40.00 48.31 0.100 2.5° 2 •

082 0.80 6.00 0.75 66 0.80 16.00 26.45 0.200 5.8° 2 •
100 1.00 6.00 0.95 69 1.00 20.00 30.08 0.200 4.9° 2 •
120 1.50 6.00 1.40 80 1.50 30.00 39.24 0.200 3.4° 2 •
140 2.00 6.00 1.90 87 2.00 40.00 48.31 0.200 2.5° 2 •
180 3.00 6.00 2.80 105 3.00 60.00 66.63 0.200 1.4° 2 •

185 3.00 6.00 2.80 105 3.00 60.00 66.63 0.500 1.4° 2 •
