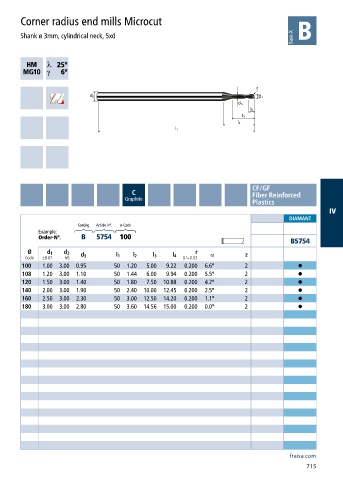

Corner radius end mills Microcut

Shank ø 3mm, cylindrical neck, 5xd

h ƍ
a ƍ

CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAMANT
Coating Article-N°. ø-Code
Example:
Order-N°. B 5754 100
B5754
Ø d 1 d 2 r α
d 3 l 1 l 2 l 3 l 4 z
Code ±0.01 h6 0/+0.03
100 1.00 3.00 0.95 50 1.20 5.00 9.22 0.200 6.6° 2 •
108 1.20 3.00 1.10 50 1.44 6.00 9.94 0.200 5.5° 2 •
120 1.50 3.00 1.40 50 1.80 7.50 10.88 0.200 4.2° 2 •
140 2.00 3.00 1.90 50 2.40 10.00 12.45 0.200 2.5° 2 •
160 2.50 3.00 2.30 50 3.00 12.50 14.20 0.200 1.1° 2 •
180 3.00 3.00 2.80 50 3.60 14.56 15.00 0.200 0.0° 2 •
