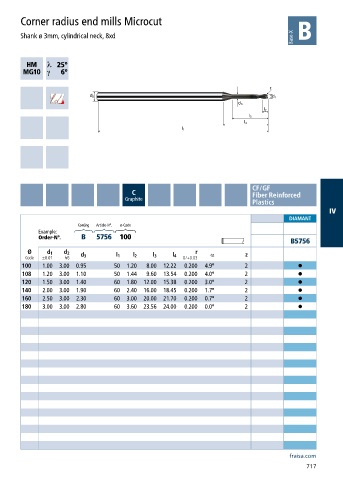

Corner radius end mills Microcut

Shank ø 3mm, cylindrical neck, 8xd

h ƍ
a ƍ

CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAMANT
Coating Article-N°. ø-Code
Example:
Order-N°. B 5756 100
B5756
Ø d 1 d 2 r α
d 3 l 1 l 2 l 3 l 4 z
Code ±0.01 h6 0/+0.03
100 1.00 3.00 0.95 50 1.20 8.00 12.22 0.200 4.9° 2 •
108 1.20 3.00 1.10 50 1.44 9.60 13.54 0.200 4.0° 2 •
120 1.50 3.00 1.40 60 1.80 12.00 15.38 0.200 3.0° 2 •
140 2.00 3.00 1.90 60 2.40 16.00 18.45 0.200 1.7° 2 •
160 2.50 3.00 2.30 60 3.00 20.00 21.70 0.200 0.7° 2 •
180 3.00 3.00 2.80 60 3.60 23.56 24.00 0.200 0.0° 2 •

fraisa.com
717
