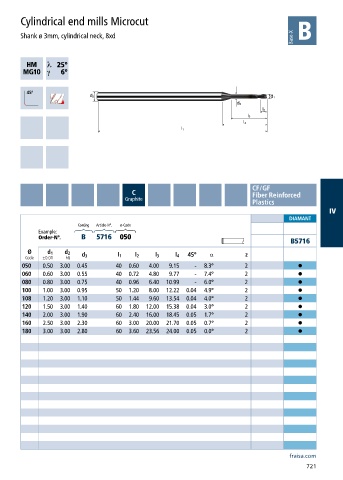

Cylindrical end mills Microcut

Shank ø 3mm, cylindrical neck, 8xd

h ƍ
a ƍ

CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAMANT
Coating Article-N°. ø-Code
Example:
Order-N°. B 5716 050
B5716
Ø d 1 d 2 α
d 3 l 1 l 2 l 3 l 4 45° z
Code ±0.01 h6
050 0.50 3.00 0.45 40 0.60 4.00 9.15 - 8.3° 2 •
060 0.60 3.00 0.55 40 0.72 4.80 9.77 - 7.4° 2 •
080 0.80 3.00 0.75 40 0.96 6.40 10.99 - 6.0° 2 •
100 1.00 3.00 0.95 50 1.20 8.00 12.22 0.04 4.9° 2 •
108 1.20 3.00 1.10 50 1.44 9.60 13.54 0.04 4.0° 2 •
120 1.50 3.00 1.40 60 1.80 12.00 15.38 0.04 3.0° 2 •
140 2.00 3.00 1.90 60 2.40 16.00 18.45 0.05 1.7° 2 •
160 2.50 3.00 2.30 60 3.00 20.00 21.70 0.05 0.7° 2 •
180 3.00 3.00 2.80 60 3.60 23.56 24.00 0.05 0.0° 2 •
