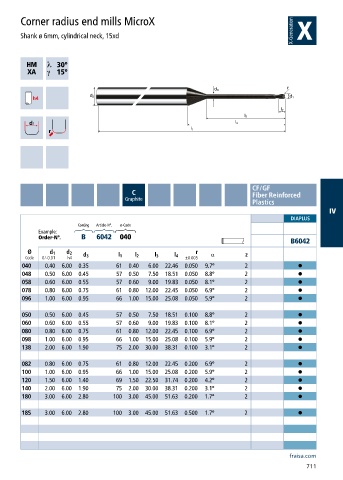

Corner radius end mills MicroX

Shank ø 6mm, cylindrical neck, 15xd

h ƍ
a ƍ

CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAPLUS
Coating Article-N°. ø-Code
Example:
Order-N°. B 6042 040
B6042
Ø d 1 d 2 r α
d 3 l 1 l 2 l 3 l 4 z
Code 0/-0.01 h4 ±0.005
040 0.40 6.00 0.35 61 0.40 6.00 22.46 0.050 9.7° 2 •
048 0.50 6.00 0.45 57 0.50 7.50 18.51 0.050 8.8° 2 •
058 0.60 6.00 0.55 57 0.60 9.00 19.83 0.050 8.1° 2 •
078 0.80 6.00 0.75 61 0.80 12.00 22.45 0.050 6.9° 2 •
096 1.00 6.00 0.95 66 1.00 15.00 25.08 0.050 5.9° 2 •

050 0.50 6.00 0.45 57 0.50 7.50 18.51 0.100 8.8° 2 •
060 0.60 6.00 0.55 57 0.60 9.00 19.83 0.100 8.1° 2 •
080 0.80 6.00 0.75 61 0.80 12.00 22.45 0.100 6.9° 2 •
098 1.00 6.00 0.95 66 1.00 15.00 25.08 0.100 5.9° 2 •
138 2.00 6.00 1.90 75 2.00 30.00 38.31 0.100 3.1° 2 •

082 0.80 6.00 0.75 61 0.80 12.00 22.45 0.200 6.9° 2 •
100 1.00 6.00 0.95 66 1.00 15.00 25.08 0.200 5.9° 2 •
120 1.50 6.00 1.40 69 1.50 22.50 31.74 0.200 4.2° 2 •
140 2.00 6.00 1.90 75 2.00 30.00 38.31 0.200 3.1° 2 •
180 3.00 6.00 2.80 100 3.00 45.00 51.63 0.200 1.7° 2 •

185 3.00 6.00 2.80 100 3.00 45.00 51.63 0.500 1.7° 2 •
