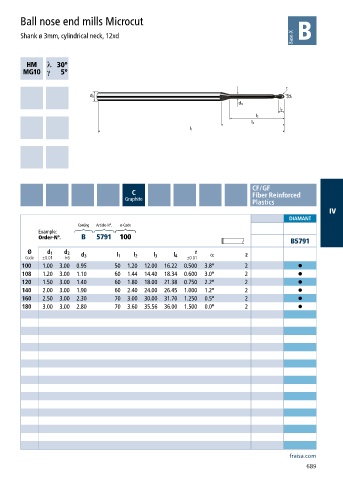

Ball nose end mills Microcut
Shank ø 3mm, cylindrical neck, 12xd
h ƍ
a ƍ
CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAMANT
Coating Article-N°. ø-Code
Example:
Order-N°. B 5791 100
B5791
Ø d 1 d 2 r α
d 3 l 1 l 2 l 3 l 4 z
Code ±0.01 h6 ±0.01
100 1.00 3.00 0.95 50 1.20 12.00 16.22 0.500 3.8° 2 •
108 1.20 3.00 1.10 60 1.44 14.40 18.34 0.600 3.0° 2 •
120 1.50 3.00 1.40 60 1.80 18.00 21.38 0.750 2.2° 2 •
140 2.00 3.00 1.90 60 2.40 24.00 26.45 1.000 1.2° 2 •
160 2.50 3.00 2.30 70 3.00 30.00 31.70 1.250 0.5° 2 •
180 3.00 3.00 2.80 70 3.60 35.56 36.00 1.500 0.0° 2 •
