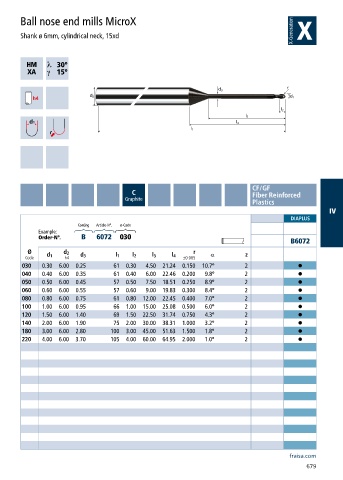

Ball nose end mills MicroX

Shank ø 6mm, cylindrical neck, 15xd

h ƍ
a ƍ

CF/GF
C Fiber Reinforced
Graphite
Plastics
IV
DIAPLUS
Coating Article-N°. ø-Code
Example:
Order-N°. B 6072 030
B6072
Ø d 2 r α
d 1 d 3 l 1 l 2 l 3 l 4 z
Code h4 ±0.005
030 0.30 6.00 0.25 61 0.30 4.50 21.24 0.150 10.7° 2 •
040 0.40 6.00 0.35 61 0.40 6.00 22.46 0.200 9.8° 2 •
050 0.50 6.00 0.45 57 0.50 7.50 18.51 0.250 8.9° 2 •
060 0.60 6.00 0.55 57 0.60 9.00 19.83 0.300 8.4° 2 •
080 0.80 6.00 0.75 61 0.80 12.00 22.45 0.400 7.0° 2 •
100 1.00 6.00 0.95 66 1.00 15.00 25.08 0.500 6.0° 2 •
120 1.50 6.00 1.40 69 1.50 22.50 31.74 0.750 4.3° 2 •
140 2.00 6.00 1.90 75 2.00 30.00 38.31 1.000 3.2° 2 •
180 3.00 6.00 2.80 100 3.00 45.00 51.63 1.500 1.8° 2 •
220 4.00 6.00 3.70 105 4.00 60.00 64.95 2.000 1.0° 2 •
