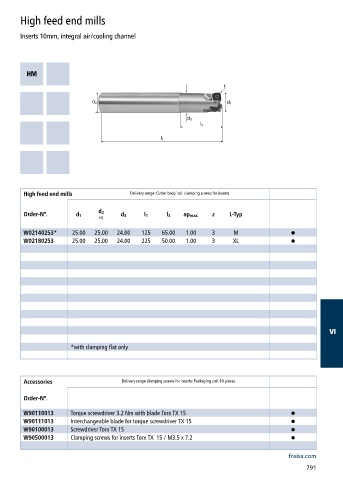

High feed end mills
Inserts 10mm, integral air/cooling channel
High feed end mills Delivery range: Cutter body incl. clamping screws for inserts
Order-N°. d 1 d 2 d 3 l 1 l 3 ap max. z L-Typ
h6
W02140253* 25.00 25.00 24.00 125 65.00 1.00 3 M •
W02180253 25.00 25.00 24.00 225 50.00 1.00 3 XL •
VI
*with clamping flat only
Accessories Delivery range clamping screws for inserts: Packaging unit 10 pieces
Order-N°.
W90110013 Torque screwdriver 3.2 Nm with blade Torx TX 15 •
W90111013 Interchangeable blade for torque screwdriver TX 15 •
W90100013 Screwdriver Torx TX 15 •
W90500013 Clamping screws for inserts Torx TX 15 / M3.5 x 7.2 •
