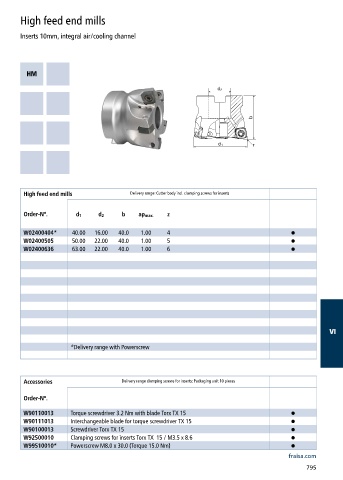

High feed end mills
Inserts 10mm, integral air/cooling channel
High feed end mills Delivery range: Cutter body incl. clamping screws for inserts
Order-N°. d 1 d 2 b ap max. z
W02400404* 40.00 16.00 40.0 1.00 4 •
W02400505 50.00 22.00 40.0 1.00 5 •
W02400636 63.00 22.00 40.0 1.00 6 •
VI
*Delivery range with Powerscrew
Accessories Delivery range clamping screws for inserts: Packaging unit 10 pieces
Order-N°.
W90110013 Torque screwdriver 3.2 Nm with blade Torx TX 15 •
W90111013 Interchangeable blade for torque screwdriver TX 15 •
W90100013 Screwdriver Torx TX 15 •
W92500010 Clamping screws for inserts Torx TX 15 / M3.5 x 8.6 •
W99510010* Powerscrew M8.0 x 30.0 (Torque 15.0 Nm) •
