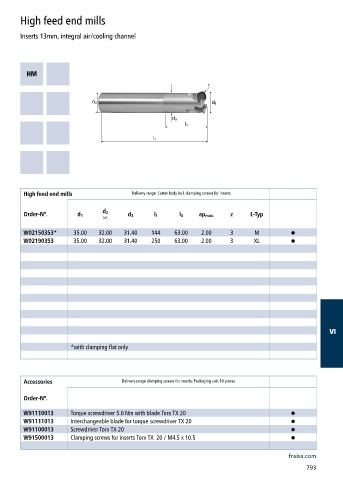

High feed end mills
Inserts 13mm, integral air/cooling channel
High feed end mills Delivery range: Cutter body incl. clamping screws for inserts
Order-N°. d 1 d 2 d 3 l 1 l 3 ap max. z L-Typ
h6
W02150353* 35.00 32.00 31.40 144 63.00 2.00 3 M •
W02190353 35.00 32.00 31.40 250 63.00 2.00 3 XL •
VI
*with clamping flat only
Accessories Delivery range clamping screws for inserts: Packaging unit 10 pieces
Order-N°.
W91110013 Torque screwdriver 5.0 Nm with blade Torx TX 20 •
W91111013 Interchangeable blade for torque screwdriver TX 20 •
W91100013 Screwdriver Torx TX 20 •
W91500013 Clamping screws for inserts Torx TX 20 / M4.5 x 10.5 •
