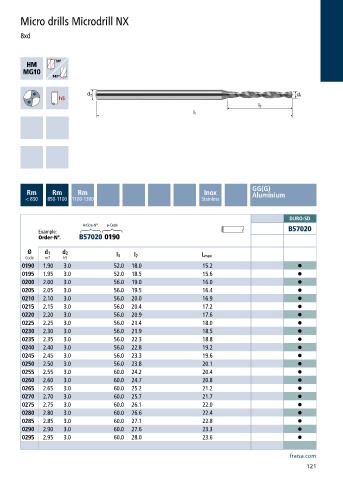

Page 123 - Carbide drills I Thread cutting tools 2023

Micro drills Microdrill NX

8xd

30º

147º

GG(G)
Rm Rm Rm Inox Aluminium
< 850 850-1100 1100-1300 Stainless

DURO-SD
Article-N°. ø-Code
Example: B57020
Order-N°. B57020 0190
Ø d 1 d 2
Code m7 h5 l 1 l 2 L max
0190 1.90 3.0 52.0 18.0 15.2 •
0195 1.95 3.0 52.0 18.5 15.6 •
0200 2.00 3.0 56.0 19.0 16.0 •
0205 2.05 3.0 56.0 19.5 16.4 •
0210 2.10 3.0 56.0 20.0 16.9 •
0215 2.15 3.0 56.0 20.4 17.2 •
0220 2.20 3.0 56.0 20.9 17.6 •
0225 2.25 3.0 56.0 21.4 18.0 •
0230 2.30 3.0 56.0 21.9 18.5 •
0235 2.35 3.0 56.0 22.3 18.8 •
0240 2.40 3.0 56.0 22.8 19.2 •
0245 2.45 3.0 56.0 23.3 19.6 •
0250 2.50 3.0 56.0 23.8 20.1 •
0255 2.55 3.0 60.0 24.2 20.4 •
0260 2.60 3.0 60.0 24.7 20.8 •
0265 2.65 3.0 60.0 25.2 21.2 •
0270 2.70 3.0 60.0 25.7 21.7 •
0275 2.75 3.0 60.0 26.1 22.0 •
0280 2.80 3.0 60.0 26.6 22.4 •
0285 2.85 3.0 60.0 27.1 22.8 •
0290 2.90 3.0 60.0 27.6 23.3 •
0295 2.95 3.0 60.0 28.0 23.6 •

fraisa.com
121
