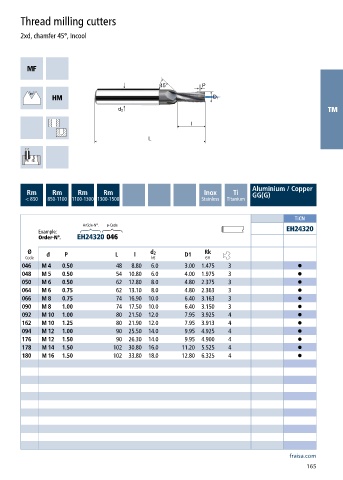

Page 167 - Carbide drills I Thread cutting tools 2023

Thread milling cutters

2xd, chamfer 45°, Incool

TM

Aluminium / Copper
Rm Rm Rm Rm Inox Ti GG(G)
< 850 850-1100 1100-1300 1300-1500 Stainless Titanium

TiCN
Article-N°. ø-Code
Example: EH24320
Order-N°. EH24320 046
Ø d 2 Rk
Code d P L l h6 D1 6H
046 M 4 0.50 48 8.80 6.0 3.00 1.475 3 •
048 M 5 0.50 54 10.80 6.0 4.00 1.975 3 •
050 M 6 0.50 62 12.80 8.0 4.80 2.375 3 •
064 M 6 0.75 62 13.10 8.0 4.80 2.363 3 •
066 M 8 0.75 74 16.90 10.0 6.40 3.163 3 •
090 M 8 1.00 74 17.50 10.0 6.40 3.150 3 •
092 M 10 1.00 80 21.50 12.0 7.95 3.925 4 •
162 M 10 1.25 80 21.90 12.0 7.95 3.913 4 •
094 M 12 1.00 90 25.50 14.0 9.95 4.925 4 •
176 M 12 1.50 90 26.30 14.0 9.95 4.900 4 •
178 M 14 1.50 102 30.80 16.0 11.20 5.525 4 •
180 M 16 1.50 102 33.80 18.0 12.80 6.325 4 •

fraisa.com
165
