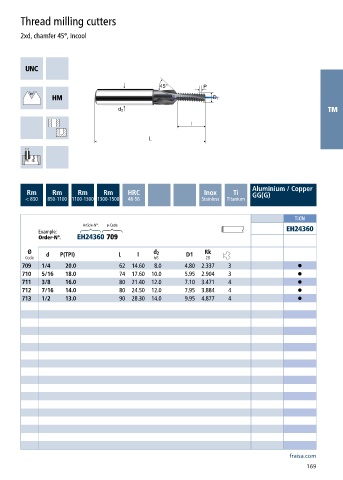

Thread milling cutters
2xd, chamfer 45°, Incool
TM
Aluminium / Copper
Rm Rm Rm Rm HRC Inox Ti GG(G)
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
TiCN
Article-N°. ø-Code
Example: EH24360
Order-N°. EH24360 709
Ø d 2 Rk
Code d P(TPI) L l h6 D1 2B
709 1/4 20.0 62 14.60 8.0 4.80 2.337 3 •
710 5/16 18.0 74 17.60 10.0 5.95 2.904 3 •
711 3/8 16.0 80 21.40 12.0 7.10 3.471 4 •
712 7/16 14.0 80 24.50 12.0 7.95 3.884 4 •
713 1/2 13.0 90 28.30 14.0 9.95 4.877 4 •
