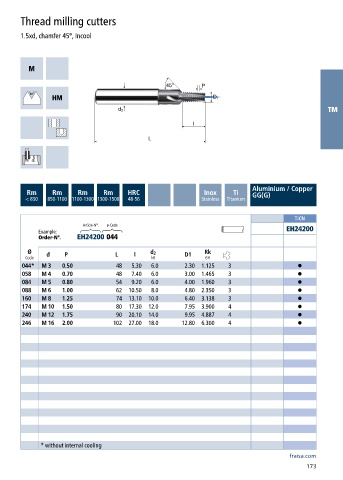

Page 175 - Carbide drills I Thread cutting tools 2023
P. 175
Thread milling cutters
1.5xd, chamfer 45°, Incool
TM
Aluminium / Copper
Rm Rm Rm Rm HRC Inox Ti GG(G)
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
TiCN
Article-N°. ø-Code
Example: EH24200
Order-N°. EH24200 044
Ø d 2 Rk
Code d P L l h6 D1 6H
044* M 3 0.50 48 5.30 6.0 2.30 1.125 3 •
058 M 4 0.70 48 7.40 6.0 3.00 1.465 3 •
084 M 5 0.80 54 9.20 6.0 4.00 1.960 3 •
088 M 6 1.00 62 10.50 8.0 4.80 2.350 3 •
160 M 8 1.25 74 13.10 10.0 6.40 3.138 3 •
174 M 10 1.50 80 17.30 12.0 7.95 3.900 4 •
240 M 12 1.75 90 20.10 14.0 9.95 4.887 4 •
246 M 16 2.00 102 27.00 18.0 12.80 6.300 4 •
* without internal cooling
