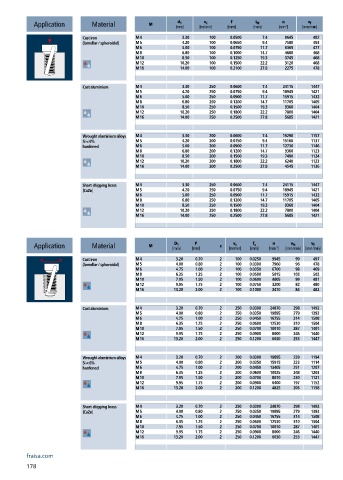

Page 180 - Carbide drills I Thread cutting tools 2023

n
v f
f
L K
d 1
Application Material M [mm] [m/min] [mm] [mm] [min ] -1 [mm/min]
v c
Cast iron M 4 3.30 100 0.0500 7.4 9645 482
(lamellar / spheroidal) M 5 4.20 100 0.0650 9.4 7580 493
M 6 5.00 100 0.0750 11.7 6365 477
M 8 6.80 100 0.1000 14.7 4680 468
M 10 8.50 100 0.1250 19.3 3745 468
M 12 10.20 100 0.1500 22.2 3120 468
M 16 14.00 100 0.2100 27.8 2275 478
Cast aluminium M 4 3.30 250 0.0600 7.4 24115 1447
M 5 4.20 250 0.0750 9.4 18945 1421
M 6 5.00 250 0.0900 11.7 15915 1432
M 8 6.80 250 0.1200 14.7 11705 1405
M 10 8.50 250 0.1500 19.3 9360 1404
M 12 10.20 250 0.1800 22.2 7800 1404
M 16 14.00 250 0.2500 27.8 5685 1421
Wrought aluminium alloys M 4 3.30 200 0.0600 7.4 19290 1157
Si < 6% M 5 4.20 200 0.0750 9.4 15160 1137
hardened M 6 5.00 200 0.0900 11.7 12730 1146
M 8 6.80 200 0.1200 14.7 9360 1123
M 10 8.50 200 0.1500 19.3 7490 1124
M 12 10.20 200 0.1800 22.2 6240 1123
M 16 14.00 200 0.2500 27.8 4545 1136
Short-chipping brass M 4 3.30 250 0.0600 7.4 24115 1447
[CuZn] M 5 4.20 250 0.0750 9.4 18945 1421
M 6 5.00 250 0.0900 11.7 15915 1432
M 8 6.80 250 0.1200 14.7 11705 1405
M 10 8.50 250 0.1500 19.3 9360 1404
M 12 10.20 250 0.1800 22.2 7800 1404
M 16 14.00 250 0.2500 27.8 5685 1421

n
v f
f z
P
v c
v fc
Application Material M [mm] [mm] z [m/min] [mm] [min ] -1 [mm/min] [mm/min]
D 1
Cast iron M 4 3.20 0.70 2 100 0.0250 9945 99 497
(lamellar / spheroidal) M 5 4.00 0.80 2 100 0.0300 7960 96 478
M 6 4.75 1.00 2 100 0.0350 6700 98 469
M 8 6.35 1.25 2 100 0.0500 5015 103 502
M 10 7.95 1.50 2 100 0.0600 4005 99 481
M 12 9.95 1.75 2 100 0.0750 3200 82 480
M 16 13.20 2.00 2 100 0.1000 2410 84 482
Cast aluminium M 4 3.20 0.70 2 250 0.0300 24870 298 1492
M 5 4.00 0.80 2 250 0.0350 19895 279 1393
M 6 4.75 1.00 2 250 0.0450 16755 314 1508
M 8 6.35 1.25 2 250 0.0600 12530 310 1504
M 10 7.95 1.50 2 250 0.0700 10010 287 1401
M 12 9.95 1.75 2 250 0.0900 8000 246 1440
M 16 13.20 2.00 2 250 0.1200 6030 253 1447
Wrought aluminium alloys M 4 3.20 0.70 2 200 0.0300 19895 239 1194
Si < 6% M 5 4.00 0.80 2 200 0.0350 15915 223 1114
hardened M 6 4.75 1.00 2 200 0.0450 13405 251 1207
M 8 6.35 1.25 2 200 0.0600 10025 248 1203
M 10 7.95 1.50 2 200 0.0700 8010 230 1121
M 12 9.95 1.75 2 200 0.0900 6400 197 1152
M 16 13.20 2.00 2 200 0.1200 4825 203 1158
Short-chipping brass M 4 3.20 0.70 2 250 0.0300 24870 298 1492
[CuZn] M 5 4.00 0.80 2 250 0.0350 19895 279 1393
M 6 4.75 1.00 2 250 0.0450 16755 314 1508
M 8 6.35 1.25 2 250 0.0600 12530 310 1504
M 10 7.95 1.50 2 250 0.0700 10010 287 1401
M 12 9.95 1.75 2 250 0.0900 8000 246 1440
M 16 13.20 2.00 2 250 0.1200 6030 253 1447
