Page 179 - Carbide drills I Thread cutting tools 2023
P. 179

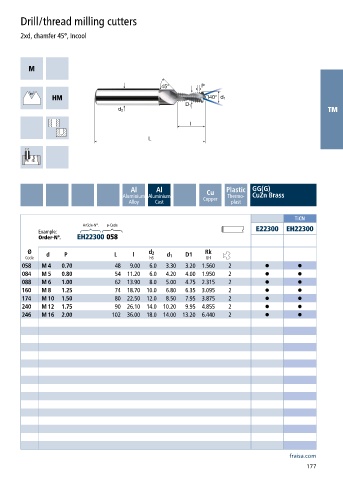

Drill/thread milling cutters
2xd, chamfer 45°, Incool
TM
Al Al Cu Plastic GG(G)
Aluminium Aluminium Copper Thermo- CuZn Brass
Alloy Cast plast
TiCN
Article-N°. ø-Code
Example: E22300 EH22300
Order-N°. EH22300 058
Ø d 2 Rk
Code d P L l h6 d 1 D1 6H
058 M 4 0.70 48 9.00 6.0 3.30 3.20 1.560 2 • •
084 M 5 0.80 54 11.20 6.0 4.20 4.00 1.950 2 • •
088 M 6 1.00 62 13.90 8.0 5.00 4.75 2.315 2 • •
160 M 8 1.25 74 18.70 10.0 6.80 6.35 3.095 2 • •
174 M 10 1.50 80 22.50 12.0 8.50 7.95 3.875 2 • •
240 M 12 1.75 90 26.10 14.0 10.20 9.95 4.855 2 • •
246 M 16 2.00 102 36.00 18.0 14.00 13.20 6.440 2 • •
fraisa.com
177
