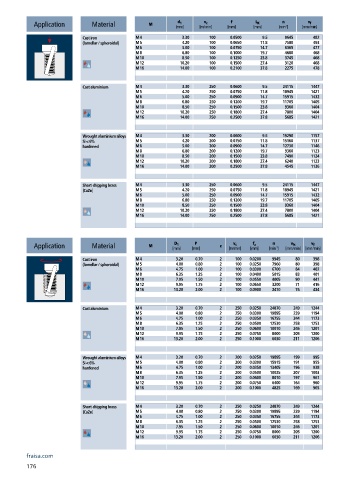

Page 178 - Carbide drills I Thread cutting tools 2023

n
v f
f
L K
d 1
Application Material M [mm] [m/min] [mm] [mm] [min ] -1 [mm/min]
v c
Cast iron M 4 3.30 100 0.0500 9.5 9645 482
(lamellar / spheroidal) M 5 4.20 100 0.0650 11.8 7580 493
M 6 5.00 100 0.0750 14.7 6365 477
M 8 6.80 100 0.1000 19.7 4680 468
M 10 8.50 100 0.1250 23.8 3745 468
M 12 10.20 100 0.1500 27.4 3120 468
M 16 14.00 100 0.2100 37.8 2275 478
Cast aluminium M 4 3.30 250 0.0600 9.5 24115 1447
M 5 4.20 250 0.0750 11.8 18945 1421
M 6 5.00 250 0.0900 14.7 15915 1432
M 8 6.80 250 0.1200 19.7 11705 1405
M 10 8.50 250 0.1500 23.8 9360 1404
M 12 10.20 250 0.1800 27.4 7800 1404
M 16 14.00 250 0.2500 37.8 5685 1421
Wrought aluminium alloys M 4 3.30 200 0.0600 9.5 19290 1157
Si < 6% M 5 4.20 200 0.0750 11.8 15160 1137
hardened M 6 5.00 200 0.0900 14.7 12730 1146
M 8 6.80 200 0.1200 19.7 9360 1123
M 10 8.50 200 0.1500 23.8 7490 1124
M 12 10.20 200 0.1800 27.4 6240 1123
M 16 14.00 200 0.2500 37.8 4545 1136
Short-chipping brass M 4 3.30 250 0.0600 9.5 24115 1447
[CuZn] M 5 4.20 250 0.0750 11.8 18945 1421
M 6 5.00 250 0.0900 14.7 15915 1432
M 8 6.80 250 0.1200 19.7 11705 1405
M 10 8.50 250 0.1500 23.8 9360 1404
M 12 10.20 250 0.1800 27.4 7800 1404
M 16 14.00 250 0.2500 37.8 5685 1421

n
v f
f z
P
v c
v fc
Application Material M [mm] [mm] z [m/min] [mm] [min ] -1 [mm/min] [mm/min]
D 1
Cast iron M 4 3.20 0.70 2 100 0.0200 9945 80 398
(lamellar / spheroidal) M 5 4.00 0.80 2 100 0.0250 7960 80 398
M 6 4.75 1.00 2 100 0.0300 6700 84 402
M 8 6.35 1.25 2 100 0.0400 5015 83 401
M 10 7.95 1.50 2 100 0.0550 4005 90 441
M 12 9.95 1.75 2 100 0.0650 3200 71 416
M 16 13.20 2.00 2 100 0.0900 2410 76 434
Cast aluminium M 4 3.20 0.70 2 250 0.0250 24870 249 1244
M 5 4.00 0.80 2 250 0.0300 19895 239 1194
M 6 4.75 1.00 2 250 0.0350 16755 244 1173
M 8 6.35 1.25 2 250 0.0500 12530 258 1253
M 10 7.95 1.50 2 250 0.0600 10010 246 1201
M 12 9.95 1.75 2 250 0.0750 8000 205 1200
M 16 13.20 2.00 2 250 0.1000 6030 211 1206
Wrought aluminium alloys M 4 3.20 0.70 2 200 0.0250 19895 199 995
Si < 6% M 5 4.00 0.80 2 200 0.0300 15915 191 955
hardened M 6 4.75 1.00 2 200 0.0350 13405 196 938
M 8 6.35 1.25 2 200 0.0500 10025 207 1003
M 10 7.95 1.50 2 200 0.0600 8010 197 961
M 12 9.95 1.75 2 200 0.0750 6400 164 960
M 16 13.20 2.00 2 200 0.1000 4825 169 965
Short-chipping brass M 4 3.20 0.70 2 250 0.0250 24870 249 1244
[CuZn] M 5 4.00 0.80 2 250 0.0300 19895 239 1194
M 6 4.75 1.00 2 250 0.0350 16755 244 1173
M 8 6.35 1.25 2 250 0.0500 12530 258 1253
M 10 7.95 1.50 2 250 0.0600 10010 246 1201
M 12 9.95 1.75 2 250 0.0750 8000 205 1200
M 16 13.20 2.00 2 250 0.1000 6030 211 1206
