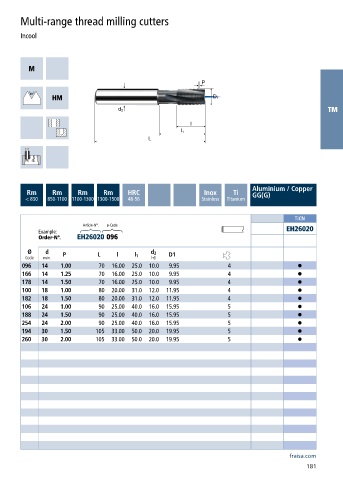

Multi-range thread milling cutters
Incool
TM
Aluminium / Copper
Rm Rm Rm Rm HRC Inox Ti GG(G)
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
TiCN
Article-N°. ø-Code
Example: EH26020
Order-N°. EH26020 096
Ø d d 2
Code min. P L l l 1 h6 D1
096 14 1.00 70 16.00 25.0 10.0 9.95 4 •
166 14 1.25 70 16.00 25.0 10.0 9.95 4 •
178 14 1.50 70 16.00 25.0 10.0 9.95 4 •
100 18 1.00 80 20.00 31.0 12.0 11.95 4 •
182 18 1.50 80 20.00 31.0 12.0 11.95 4 •
106 24 1.00 90 25.00 40.0 16.0 15.95 5 •
188 24 1.50 90 25.00 40.0 16.0 15.95 5 •
254 24 2.00 90 25.00 40.0 16.0 15.95 5 •
194 30 1.50 105 33.00 50.0 20.0 19.95 5 •
260 30 2.00 105 33.00 50.0 20.0 19.95 5 •
