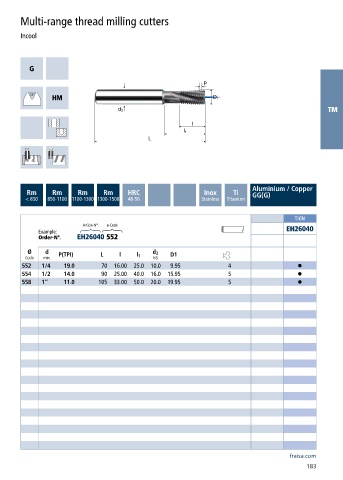

Page 185 - Carbide drills I Thread cutting tools 2023
P. 185
Multi-range thread milling cutters
Incool
TM
Aluminium / Copper
Rm Rm Rm Rm HRC Inox Ti GG(G)
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
TiCN
Article-N°. ø-Code
Example: EH26040
Order-N°. EH26040 552
Ø d d 2
Code min. P(TPI) L l l 1 h6 D1
552 1/4 19.0 70 16.00 25.0 10.0 9.95 4 •
554 1/2 14.0 90 25.00 40.0 16.0 15.95 5 •
558 1‘‘ 11.0 105 33.00 50.0 20.0 19.95 5 •
fraisa.com
183
