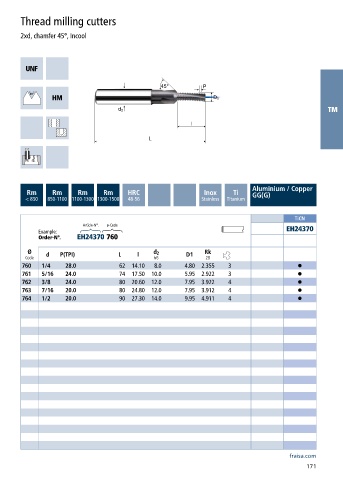

Page 173 - Carbide drills I Thread cutting tools 2023
P. 173
Thread milling cutters
2xd, chamfer 45°, Incool
TM
Aluminium / Copper
Rm Rm Rm Rm HRC Inox Ti GG(G)
< 850 850-1100 1100-1300 1300-1500 48-56 Stainless Titanium
TiCN
Article-N°. ø-Code
Example: EH24370
Order-N°. EH24370 760
Ø d 2 Rk
Code d P(TPI) L l h6 D1 2B
760 1/4 28.0 62 14.10 8.0 4.80 2.355 3 •
761 5/16 24.0 74 17.50 10.0 5.95 2.922 3 •
762 3/8 24.0 80 20.60 12.0 7.95 3.922 4 •
763 7/16 20.0 80 24.80 12.0 7.95 3.912 4 •
764 1/2 20.0 90 27.30 14.0 9.95 4.911 4 •
fraisa.com
171
