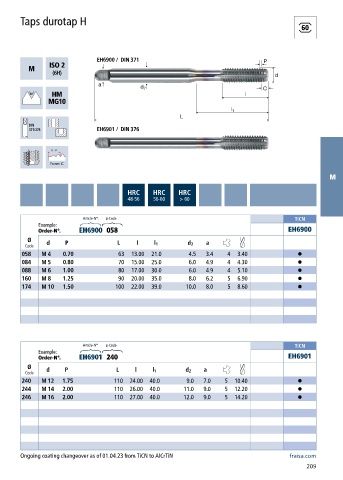

Page 211 - Carbide drills I Thread cutting tools 2023
P. 211
Taps durotap H
EH6900 / DIN 371
EH6901 / DIN 376
M
HRC HRC HRC
48-56 56-60 > 60
Article-N°. ø-Code TiCN
Example:
Order-N°. EH6900 058 EH6900
Ø
Code d P L l l 1 d 2 a
058 M 4 0.70 63 13.00 21.0 4.5 3.4 4 3.40 •
084 M 5 0.80 70 15.00 25.0 6.0 4.9 4 4.30 •
088 M 6 1.00 80 17.00 30.0 6.0 4.9 4 5.10 •
160 M 8 1.25 90 20.00 35.0 8.0 6.2 5 6.90 •
174 M 10 1.50 100 22.00 39.0 10.0 8.0 5 8.60 •
Article-N°. ø-Code TiCN
Example:
Order-N°. EH6901 240 EH6901
Ø
Code d P L l l 1 d 2 a
240 M 12 1.75 110 24.00 40.0 9.0 7.0 5 10.40 •
244 M 14 2.00 110 26.00 40.0 11.0 9.0 5 12.20 •
246 M 16 2.00 110 27.00 40.0 12.0 9.0 5 14.20 •
Ongoing coating changeover as of 01.04.23 from TiCN to AlCrTiN fraisa.com
