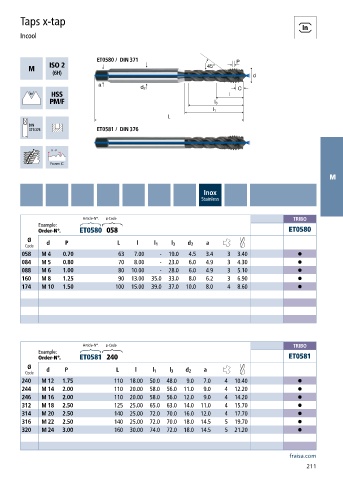

Taps x-tap

       Incool


                            ET0580 /  DIN 371










                            ET0581 /  DIN 376






                                                                                             M

                                                          Inox
                                                         Stainless


                        Article-N°.  ø-Code                                       TRIBO
            Example:
            Order-N°.  ET0580  058                                               ET0580
         Ø
        Code  d    P              L    l    l 1  l 3  d 2  a
       058   M 4  0.70            63  7.00   -  19.0  4.5  3.4  3  3.40             •
       084   M 5  0.80            70  8.00   -  23.0  6.0  4.9  3  4.30             •
       088   M 6  1.00            80  10.00  -  28.0  6.0  4.9  3  5.10             •
       160   M 8  1.25            90  13.00  35.0  33.0  8.0  6.2  3  6.90          •
       174   M 10  1.50          100  15.00  39.0  37.0  10.0  8.0  4  8.60         •








                        Article-N°.  ø-Code                                       TRIBO
            Example:
            Order-N°.  ET0581  240                                               ET0581
         Ø
        Code  d    P             L     l   l 1  l 3  d 2  a
       240   M 12  1.75          110  18.00  50.0  48.0  9.0  7.0  4  10.40         •
       244   M 14  2.00          110  20.00  58.0  56.0  11.0  9.0  4  12.20        •
       246   M 16  2.00          110  20.00  58.0  56.0  12.0  9.0  4  14.20        •
       312   M 18  2.50          125  25.00  65.0  63.0  14.0  11.0  4  15.70       •
       314   M 20  2.50          140  25.00  72.0  70.0  16.0  12.0  4  17.70       •
       316   M 22  2.50          140  25.00  72.0  70.0  18.0  14.5  5  19.70       •
       320   M 24  3.00          160  30.00  74.0  72.0  18.0  14.5  5  21.20       •
