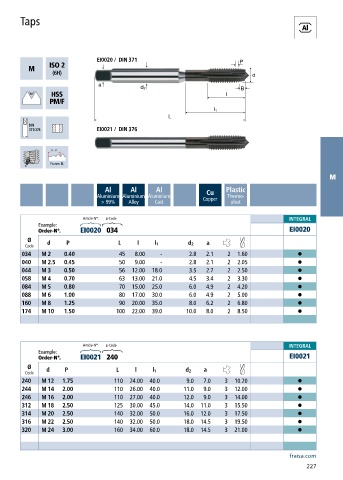

Page 229 - Carbide drills I Thread cutting tools 2023

Taps

EI0020 / DIN 371

EI0021 / DIN 376

M
Al Al Al Plastic
Aluminium Aluminium Aluminium Cu Thermo-
> 99% Alloy Cast Copper plast

Article-N°. ø-Code INTEGRAL
Example:
Order-N°. EI0020 034 EI0020
Ø
Code d P L l l 1 d 2 a
034 M 2 0.40 45 8.00 - 2.8 2.1 2 1.60 •
040 M 2.5 0.45 50 9.00 - 2.8 2.1 2 2.05 •
044 M 3 0.50 56 12.00 18.0 3.5 2.7 2 2.50 •
058 M 4 0.70 63 13.00 21.0 4.5 3.4 2 3.30 •
084 M 5 0.80 70 15.00 25.0 6.0 4.9 2 4.20 •
088 M 6 1.00 80 17.00 30.0 6.0 4.9 2 5.00 •
160 M 8 1.25 90 20.00 35.0 8.0 6.2 2 6.80 •
174 M 10 1.50 100 22.00 39.0 10.0 8.0 2 8.50 •

Article-N°. ø-Code INTEGRAL
Example:
Order-N°. EI0021 240 EI0021
Ø
Code d P L l l 1 d 2 a
240 M 12 1.75 110 24.00 40.0 9.0 7.0 3 10.20 •
244 M 14 2.00 110 26.00 40.0 11.0 9.0 3 12.00 •
246 M 16 2.00 110 27.00 40.0 12.0 9.0 3 14.00 •
312 M 18 2.50 125 30.00 45.0 14.0 11.0 3 15.50 •
314 M 20 2.50 140 32.00 50.0 16.0 12.0 3 17.50 •
316 M 22 2.50 140 32.00 50.0 18.0 14.5 3 19.50 •
320 M 24 3.00 160 34.00 60.0 18.0 14.5 3 21.00 •

fraisa.com
227
