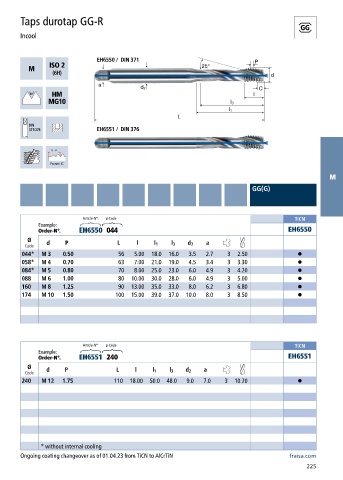

Taps durotap GG-R
Incool
EH6550 / DIN 371
EH6551 / DIN 376
M
GG(G)
Article-N°. ø-Code TiCN
Example:
Order-N°. EH6550 044 EH6550
Ø
Code d P L l l 1 l 3 d 2 a
044* M 3 0.50 56 5.00 18.0 16.0 3.5 2.7 3 2.50 •
058* M 4 0.70 63 7.00 21.0 19.0 4.5 3.4 3 3.30 •
084* M 5 0.80 70 8.00 25.0 23.0 6.0 4.9 3 4.20 •
088 M 6 1.00 80 10.00 30.0 28.0 6.0 4.9 3 5.00 •
160 M 8 1.25 90 13.00 35.0 33.0 8.0 6.2 3 6.80 •
174 M 10 1.50 100 15.00 39.0 37.0 10.0 8.0 3 8.50 •
Article-N°. ø-Code TiCN
Example:
Order-N°. EH6551 240 EH6551
Ø
Code d P L l l 1 l 3 d 2 a
240 M 12 1.75 110 18.00 50.0 48.0 9.0 7.0 3 10.20 •
* without internal cooling
Ongoing coating changeover as of 01.04.23 from TiCN to AlCrTiN fraisa.com
