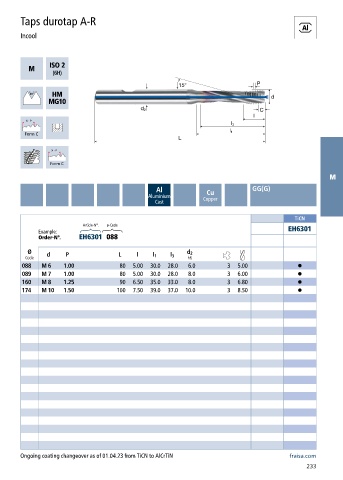

Taps durotap A-R
Incool
M
Al GG(G)
Aluminium Cu
Cast Copper
TiCN
Article-N°. ø-Code
Example: EH6301
Order-N°. EH6301 088
Ø d 2
Code d P L l l 1 l 3 h6
088 M 6 1.00 80 5.00 30.0 28.0 6.0 3 5.00 •
089 M 7 1.00 80 5.00 30.0 28.0 8.0 3 6.00 •
160 M 8 1.25 90 6.50 35.0 33.0 8.0 3 6.80 •
174 M 10 1.50 100 7.50 39.0 37.0 10.0 3 8.50 •
Ongoing coating changeover as of 01.04.23 from TiCN to AlCrTiN fraisa.com
