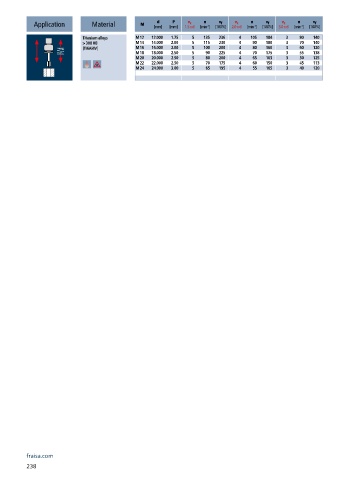

Page 240 - Carbide drills I Thread cutting tools 2023
P. 240
v f
v c
n
P
v c
n
v f
v c
n
v f
d
Application Material M [mm] [mm] 1.5 x d [min ] -1 [100%] 2.0 x d [min ] -1 [100%] 3.0 x d [min ] -1 [100%]
Titanium alloys M 12 12.000 1.75 5 135 236 4 105 184 3 80 140
> 300 HB M 14 14.000 2.00 5 115 230 4 90 180 3 70 140
[Ti6Al4V] M 16 16.000 2.00 5 100 200 4 80 160 3 60 120
M 18 18.000 2.50 5 90 225 4 70 175 3 55 138
M 20 20.000 2.50 5 80 200 4 65 163 3 50 125
M 22 22.000 2.50 5 70 175 4 60 150 3 45 113
M 24 24.000 3.00 5 65 195 4 55 165 3 40 120
