Page 241 - Carbide drills I Thread cutting tools 2023
P. 241

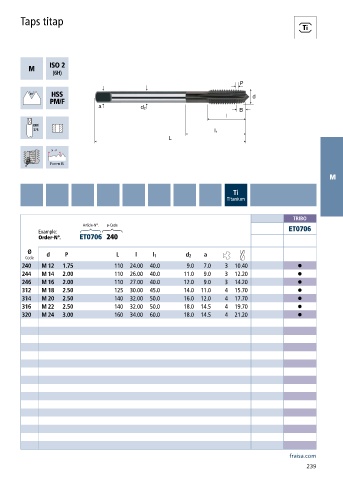

Taps titap
M
Ti
Titanium
TRIBO
Article-N°. ø-Code
Example: ET0706
Order-N°. ET0706 240
Ø
Code d P L l l 1 d 2 a
240 M 12 1.75 110 24.00 40.0 9.0 7.0 3 10.40 •
244 M 14 2.00 110 26.00 40.0 11.0 9.0 3 12.20 •
246 M 16 2.00 110 27.00 40.0 12.0 9.0 3 14.20 •
312 M 18 2.50 125 30.00 45.0 14.0 11.0 4 15.70 •
314 M 20 2.50 140 32.00 50.0 16.0 12.0 4 17.70 •
316 M 22 2.50 140 32.00 50.0 18.0 14.5 4 19.70 •
320 M 24 3.00 160 34.00 60.0 18.0 14.5 4 21.20 •
fraisa.com
239
