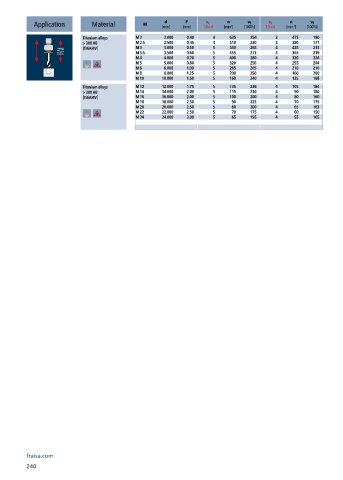

Page 242 - Carbide drills I Thread cutting tools 2023

n
v f
v c
d
P
v c
v f
n
Application Material M [mm] [mm] 1.0 x d [min ] -1 [100%] 1.5 x d [min ] -1 [100%]
Titanium alloys M 2 2.000 0.40 4 635 254 3 475 190
> 300 HB M 2.5 2.500 0.45 4 510 230 3 380 171
[Ti6Al4V] M 3 3.000 0.50 5 530 265 4 425 213
M 3.5 3.500 0.60 5 455 273 4 365 219
M 4 4.000 0.70 5 400 280 4 320 224
M 5 5.000 0.80 5 320 256 4 255 204
M 6 6.000 1.00 5 265 265 4 210 210
M 8 8.000 1.25 5 200 250 4 160 200
M 10 10.000 1.50 5 160 240 4 125 188
Titanium alloys M 12 12.000 1.75 5 135 236 4 105 184
> 300 HB M 14 14.000 2.00 5 115 230 4 90 180
[Ti6Al4V] M 16 16.000 2.00 5 100 200 4 80 160
M 18 18.000 2.50 5 90 225 4 70 175
M 20 20.000 2.50 5 80 200 4 65 163
M 22 22.000 2.50 5 70 175 4 60 150
M 24 24.000 3.00 5 65 195 4 55 165
