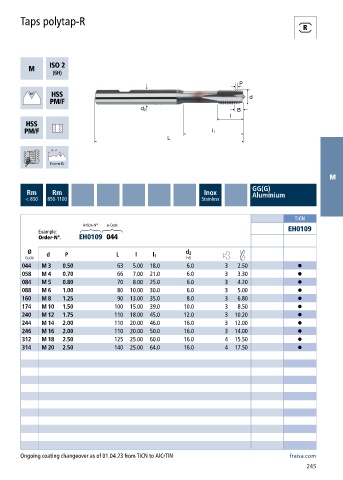

Taps polytap-R
M
GG(G)
Rm Rm Inox Aluminium
< 850 850-1100 Stainless
TiCN
Article-N°. ø-Code
Example: EH0109
Order-N°. EH0109 044
Ø d 2
Code d P L l l 1 h6
044 M 3 0.50 63 5.00 18.0 6.0 3 2.50 •
058 M 4 0.70 66 7.00 21.0 6.0 3 3.30 •
084 M 5 0.80 70 8.00 25.0 6.0 3 4.20 •
088 M 6 1.00 80 10.00 30.0 6.0 3 5.00 •
160 M 8 1.25 90 13.00 35.0 8.0 3 6.80 •
174 M 10 1.50 100 15.00 39.0 10.0 3 8.50 •
240 M 12 1.75 110 18.00 45.0 12.0 3 10.20 •
244 M 14 2.00 110 20.00 46.0 16.0 3 12.00 •
246 M 16 2.00 110 20.00 50.0 16.0 3 14.00 •
312 M 18 2.50 125 25.00 60.0 16.0 4 15.50 •
314 M 20 2.50 140 25.00 64.0 16.0 4 17.50 •
Ongoing coating changeover as of 01.04.23 from TiCN to AlCrTiN fraisa.com
