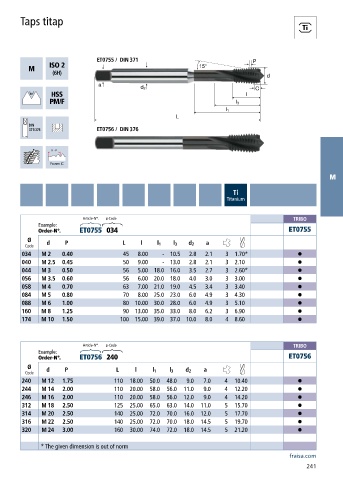

Page 243 - Carbide drills I Thread cutting tools 2023

Taps titap

ET0755 / DIN 371

ET0756 / DIN 376

M

Ti
Titanium

Article-N°. ø-Code TRIBO
Example:
Order-N°. ET0755 034 ET0755
Ø
Code d P L l l 1 l 3 d 2 a
034 M 2 0.40 45 8.00 - 10.5 2.8 2.1 3 1.70* •
040 M 2.5 0.45 50 9.00 - 13.0 2.8 2.1 3 2.10 •
044 M 3 0.50 56 5.00 18.0 16.0 3.5 2.7 3 2.60* •
056 M 3.5 0.60 56 6.00 20.0 18.0 4.0 3.0 3 3.00 •
058 M 4 0.70 63 7.00 21.0 19.0 4.5 3.4 3 3.40 •
084 M 5 0.80 70 8.00 25.0 23.0 6.0 4.9 3 4.30 •
088 M 6 1.00 80 10.00 30.0 28.0 6.0 4.9 3 5.10 •
160 M 8 1.25 90 13.00 35.0 33.0 8.0 6.2 3 6.90 •
174 M 10 1.50 100 15.00 39.0 37.0 10.0 8.0 4 8.60 •

Article-N°. ø-Code TRIBO
Example:
Order-N°. ET0756 240 ET0756
Ø
Code d P L l l 1 l 3 d 2 a
240 M 12 1.75 110 18.00 50.0 48.0 9.0 7.0 4 10.40 •
244 M 14 2.00 110 20.00 58.0 56.0 11.0 9.0 4 12.20 •
246 M 16 2.00 110 20.00 58.0 56.0 12.0 9.0 4 14.20 •
312 M 18 2.50 125 25.00 65.0 63.0 14.0 11.0 5 15.70 •
314 M 20 2.50 140 25.00 72.0 70.0 16.0 12.0 5 17.70 •
316 M 22 2.50 140 25.00 72.0 70.0 18.0 14.5 5 19.70 •
320 M 24 3.00 160 30.00 74.0 72.0 18.0 14.5 5 21.20 •

* The given dimension is out of norm
