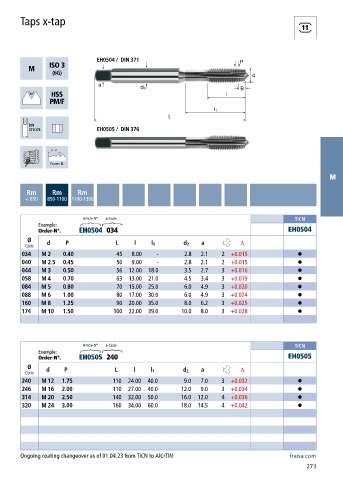

Page 275 - Carbide drills I Thread cutting tools 2023

Taps x-tap

EH0504 / DIN 371

EH0505 / DIN 376

M

Rm Rm Rm
< 850 850-1100 1100-1300

Article-N°. ø-Code TiCN
Example:
Order-N°. EH0504 034 EH0504
Ø
Code d P L l l 1 d 2 a
034 M 2 0.40 45 8.00 - 2.8 2.1 2 +0.015 •
040 M 2.5 0.45 50 9.00 - 2.8 2.1 2 +0.015 •
044 M 3 0.50 56 12.00 18.0 3.5 2.7 3 +0.016 •
058 M 4 0.70 63 13.00 21.0 4.5 3.4 3 +0.019 •
084 M 5 0.80 70 15.00 25.0 6.0 4.9 3 +0.020 •
088 M 6 1.00 80 17.00 30.0 6.0 4.9 3 +0.024 •
160 M 8 1.25 90 20.00 35.0 8.0 6.2 3 +0.025 •
174 M 10 1.50 100 22.00 39.0 10.0 8.0 3 +0.028 •

Article-N°. ø-Code TiCN
Example:
Order-N°. EH0505 240 EH0505
Ø
Code d P L l l 1 d 2 a
240 M 12 1.75 110 24.00 40.0 9.0 7.0 3 +0.032 •
246 M 16 2.00 110 27.00 40.0 12.0 9.0 3 +0.034 •
314 M 20 2.50 140 32.00 50.0 16.0 12.0 4 +0.036 •
320 M 24 3.00 160 34.00 60.0 18.0 14.5 4 +0.042 •

Ongoing coating changeover as of 01.04.23 from TiCN to AlCrTiN fraisa.com
273
