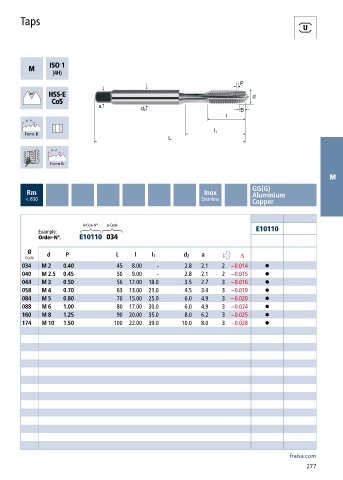

Page 279 - Carbide drills I Thread cutting tools 2023
P. 279

Taps

























                                                                                             M
                                                                       GG(G)
        Rm                                                Inox         Aluminium
        < 850                                            Stainless     Copper



                        Article-N°.  ø-Code
            Example:                                                    E10110
            Order-N°.  E10110  034
         Ø
        Code  d    P             L    l    l 1      d 2  a
       034   M 2   0.40          45   8.00   -      2.8  2.1   2  –0.014   •
       040   M 2.5  0.45         50   9.00   -      2.8  2.1   2  –0.015   •
       044   M 3   0.50          56  12.00  18.0    3.5  2.7   3  –0.016   •
       058   M 4   0.70          63  13.00  21.0    4.5  3.4   3  –0.019   •
       084   M 5   0.80          70  15.00  25.0    6.0  4.9   3  –0.020   •
       088   M 6   1.00          80  17.00  30.0    6.0  4.9   3  –0.024   •
       160   M 8   1.25          90  20.00  35.0    8.0  6.2   3  –0.025   •
       174   M 10  1.50          100  22.00  39.0  10.0  8.0   3  –0.028   •
