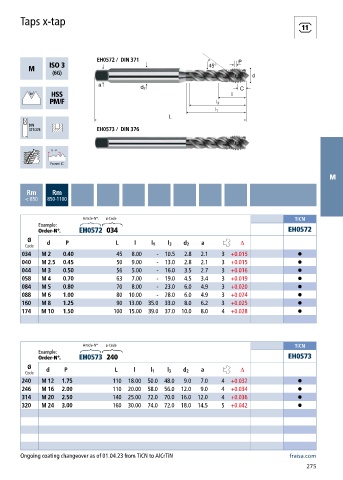

Page 277 - Carbide drills I Thread cutting tools 2023

Taps x-tap

EH0572 / DIN 371

EH0573 / DIN 376

M

Rm Rm
< 850 850-1100

Article-N°. ø-Code TiCN
Example:
Order-N°. EH0572 034 EH0572
Ø
Code d P L l l 1 l 3 d 2 a
034 M 2 0.40 45 8.00 - 10.5 2.8 2.1 3 +0.015 •
040 M 2.5 0.45 50 9.00 - 13.0 2.8 2.1 3 +0.015 •
044 M 3 0.50 56 5.00 - 16.0 3.5 2.7 3 +0.016 •
058 M 4 0.70 63 7.00 - 19.0 4.5 3.4 3 +0.019 •
084 M 5 0.80 70 8.00 - 23.0 6.0 4.9 3 +0.020 •
088 M 6 1.00 80 10.00 - 28.0 6.0 4.9 3 +0.024 •
160 M 8 1.25 90 13.00 35.0 33.0 8.0 6.2 3 +0.025 •
174 M 10 1.50 100 15.00 39.0 37.0 10.0 8.0 4 +0.028 •

Article-N°. ø-Code TiCN
Example:
Order-N°. EH0573 240 EH0573
Ø
Code d P L l l 1 l 3 d 2 a
240 M 12 1.75 110 18.00 50.0 48.0 9.0 7.0 4 +0.032 •
246 M 16 2.00 110 20.00 58.0 56.0 12.0 9.0 4 +0.034 •
314 M 20 2.50 140 25.00 72.0 70.0 16.0 12.0 4 +0.036 •
320 M 24 3.00 160 30.00 74.0 72.0 18.0 14.5 5 +0.042 •

Ongoing coating changeover as of 01.04.23 from TiCN to AlCrTiN fraisa.com
275
